Dry Freight Truck Bodies with Lightweight And High-strength Thermoplastic Honeycomb Panels

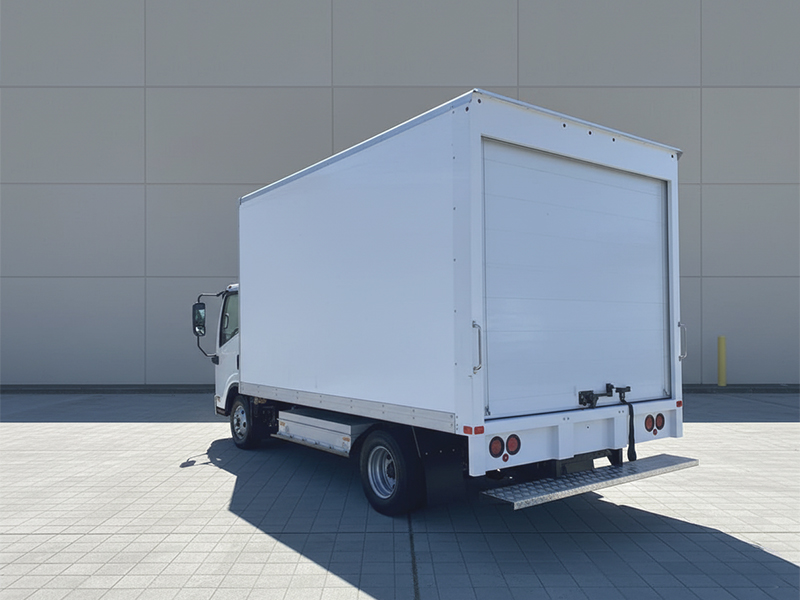

Truck Image

Details

As a professional manufacturer of dry truck bodies, we provide comprehensive body solutions, flexibly adapting to diverse freight transport scenarios. In terms of body sizes, we offer standard lengths of 16 ft, 18 ft and 20 ft, width of 8 ft, and height of 8 ft. We can also tailor-make custom bodies of any requested legnth upto 20 ft and any reqeusted width and, or staggered heights based on your specific cargo volume, cargo characteristics, and vehicle compatibility, ensuring each body precisely meets your operational needs.

In terms of accessory configurations, we can customize and install roll up door, hydraulic lift tailgates, aluminum loading ramp etc . We also support the integration of functional components such as LED warning lights, cargo anchors, and temperature monitoring interfaces, comprehensively enhancing loading and unloading efficiency and cargo transportation safety.

Advantages of Composite Panel

  • Low Weight
  • High Mechanical Strength
  • Very Good Rot And UV Resistance
  • Wide Temperature Range For Applications
  • Very High Chemical Resistance
  • Versatile Panel Sizes
  • Wide Range Of Potential Usages

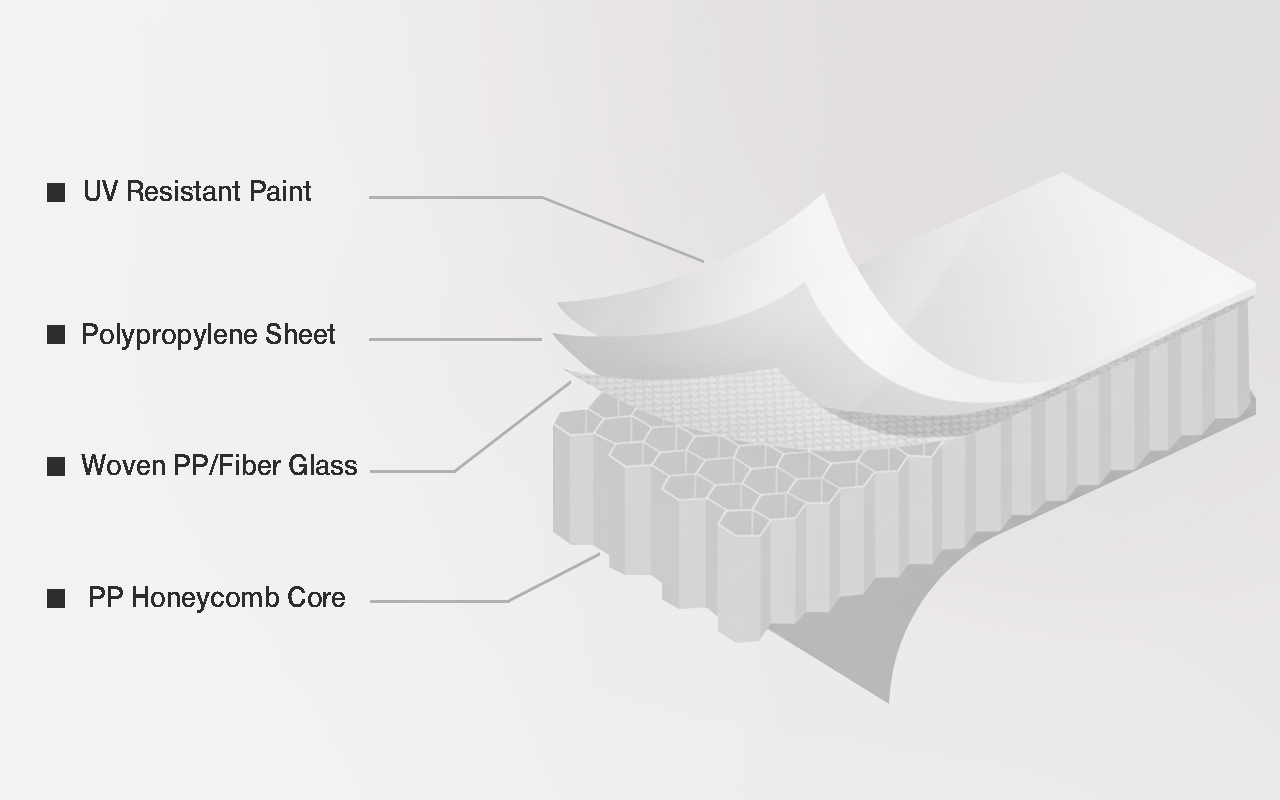

structure of composite panel

Mechanical Properties of Composite Panel

Test Item Test Result
Compressive Strength 2.0MPa
Shear Strength 0.45MPa
Shear Modulus 16.5MPa
Peel Strength 145 (N*mm)/mm
Bend Strength
(Bearing Distance 150mm)
8.6MPa
Impact Strength
(Spherical Head) Φ 20mm,Weight 8.21kg
2.0MPa
Planarity < 4mm/m

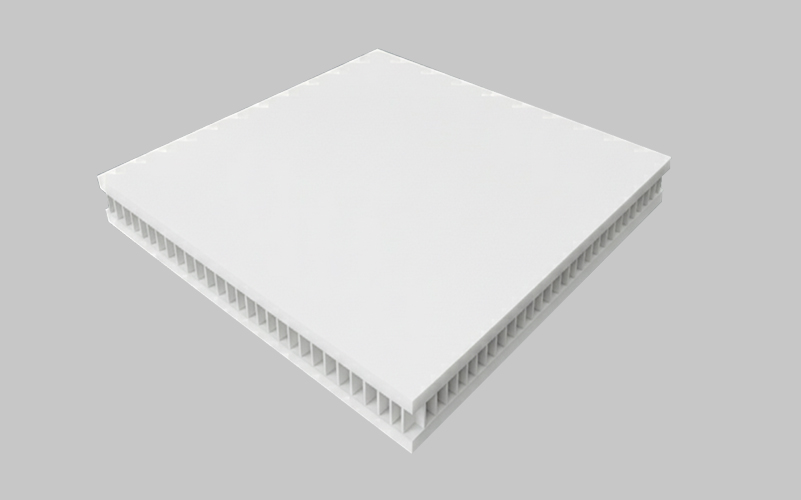

Thermoplastic Honeycomb Panel

Customized Options

Related Options A B C D
Floor Options Bamboo plywood Composite Sandwich Panel + FRP Aluminum Anti Skid Composite Sandwich Panel
Base Frame Options Aluminum profile assembly Steel frame
Rear Door Frame Options Stainless steel door frame welding assembly
Rear Door Options Aluminum profile barn door Aluminum profile roll up door
Auxiliary light Options Interior lighting Front and rear marker lights
