DRY VAN & REFRIGERATED
TRUCK BODIES FOR ALBERTA.
Evermount Truck Solutions manufactures dry freight (dry van) and refrigerated truck bodies in Abbotsford, BC, for businesses in British Columbia and Alberta — including fleets, owner-operators and dealers in Calgary, Edmonton and across the province. Every body is built to order in 10, 12, 14, 16, 18 and 20 ft lengths.
Dry van or reefer, built to order.

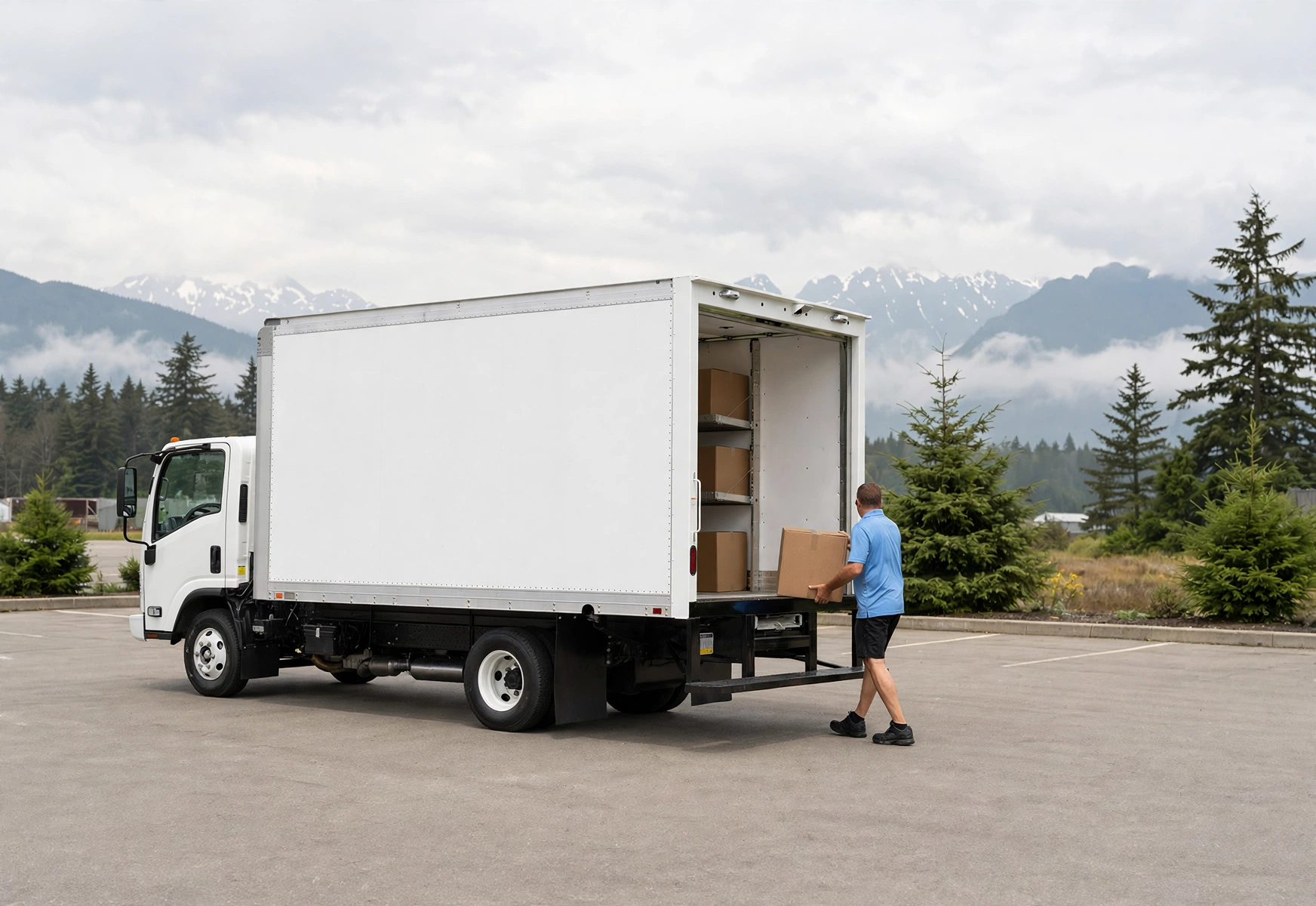

Dry freight (dry van) bodies
Built around 30 mm GRP sandwich panels with internal reinforcements, a 3/4″ marine ply floor with a 1.5 mm anti-slip GRP top layer, a Maclaren roll-up rear door and a powder-coated stainless steel rear door frame. Approximate weight from 780 kg (10 ft) to 1,700 kg (20 ft).
Refrigerated (reefer) bodies
Insulated with 100 mm thick XPS in the floor (38 kg/m³) and PU foam (45 kg/m³) in all other panels; floor and roof panels are 120 mm and the remaining panels 100 mm. Includes a floor drain assembly and an insulated Maclaren roll-up door. Approximate weight from 940 kg (10 ft) to 2,050 kg (20 ft). The refrigeration unit is in customer scope.
Body sizes at a glance.
Standard sizes and approximate weights from the Evermount truck body specification sheet. Refrigerated bodies share the same external sizes as dry freight bodies.
| Body length | 10 FT | 12 FT | 14 FT | 16 FT | 18 FT | 20 FT |
|---|---|---|---|---|---|---|
| Dry freight external (L × W × H, ft) | 10 × 7.5 × 7.5 | 12 × 7.5 × 7.5 | 14 × 8 × 8 | 16 × 8 × 8 | 18 × 8 × 8 | 20 × 8 × 8 |
| Dry freight approx. weight (kg) | 780 | 900 | 1,120 | 1,360 | 1,550 | 1,700 |
| Refrigerated internal (L × W × H, ft) | 9.3 × 6.8 × 6.8 | 11.3 × 6.8 × 6.8 | 13.34 × 7.34 × 7.34 | 15.34 × 7.34 × 7.34 | 17.34 × 7.34 × 7.34 | 19.34 × 7.34 × 7.34 |
| Refrigerated approx. weight (kg) | 940 | 1,075 | 1,300 | 1,750 | 1,850 | 2,050 |
What comes standard.
- Internal and external aluminum extrusion panels and powder-coated aluminum waterproof corner caps
- Galvanized frame, bolted sub-frame with connection brackets
- Motion-sensor LED interior lighting (one light on 10 and 12 ft bodies, two on 14–20 ft)
- DOT-approved clearance, licence plate, brake, turn and reverse lights, plus DOT-approved yellow and red reflective decals
- Rear bumper / step with chequered aluminum plate, one set of PVC Evermount mud flaps and one set of E-track
Liftgates, cargo control and lighting upfits can be discussed as part of the build — see liftgates, cargo control & parts and lighting & electrical. Dealers and fleet buyers can also see For Dealers & Fleets, and Lower Mainland buyers can see truck bodies for Vancouver.
How to order.
Tell us your chassis, the body length you need and your application. We start by understanding your cargo, chassis and operating conditions, then recommend a configuration. Final specifications are confirmed for each chassis and application. Questions? See our truck body FAQs or the truck body sizes guide.
Let’s spec your next truck body.
Tell us your chassis, body length and application and we will recommend a configuration. Use the Request a Quote form, email sales@evermount.ca or call Sales at +1 (250) 885-9335. Operations & Engineering: +1 (250) 884-4437.
