TRUCK BODIES FOR VANCOUVER
& THE LOWER MAINLAND.
Evermount Truck Solutions manufactures dry van (dry freight) and refrigerated (reefer) truck bodies in Abbotsford, BC, in the Fraser Valley. We work with fleets, owner-operators and dealers across Vancouver and the Lower Mainland, including Surrey, Langley, Burnaby, Richmond and Delta. Every body is built to order in 10, 12, 14, 16, 18 and 20 ft lengths.
Two core bodies for Lower Mainland routes.
Dry van truck bodies
A dry van body built around 30 mm GRP sandwich panels with internal reinforcements, a 3/4″ marine ply floor with a 1.5 mm anti-slip GRP top layer, a Maclaren roll-up door with 1″ lightweight PVC and a powder-coated stainless steel rear door frame. Approximate weight from 780 kg (10 ft) to 1,700 kg (20 ft).

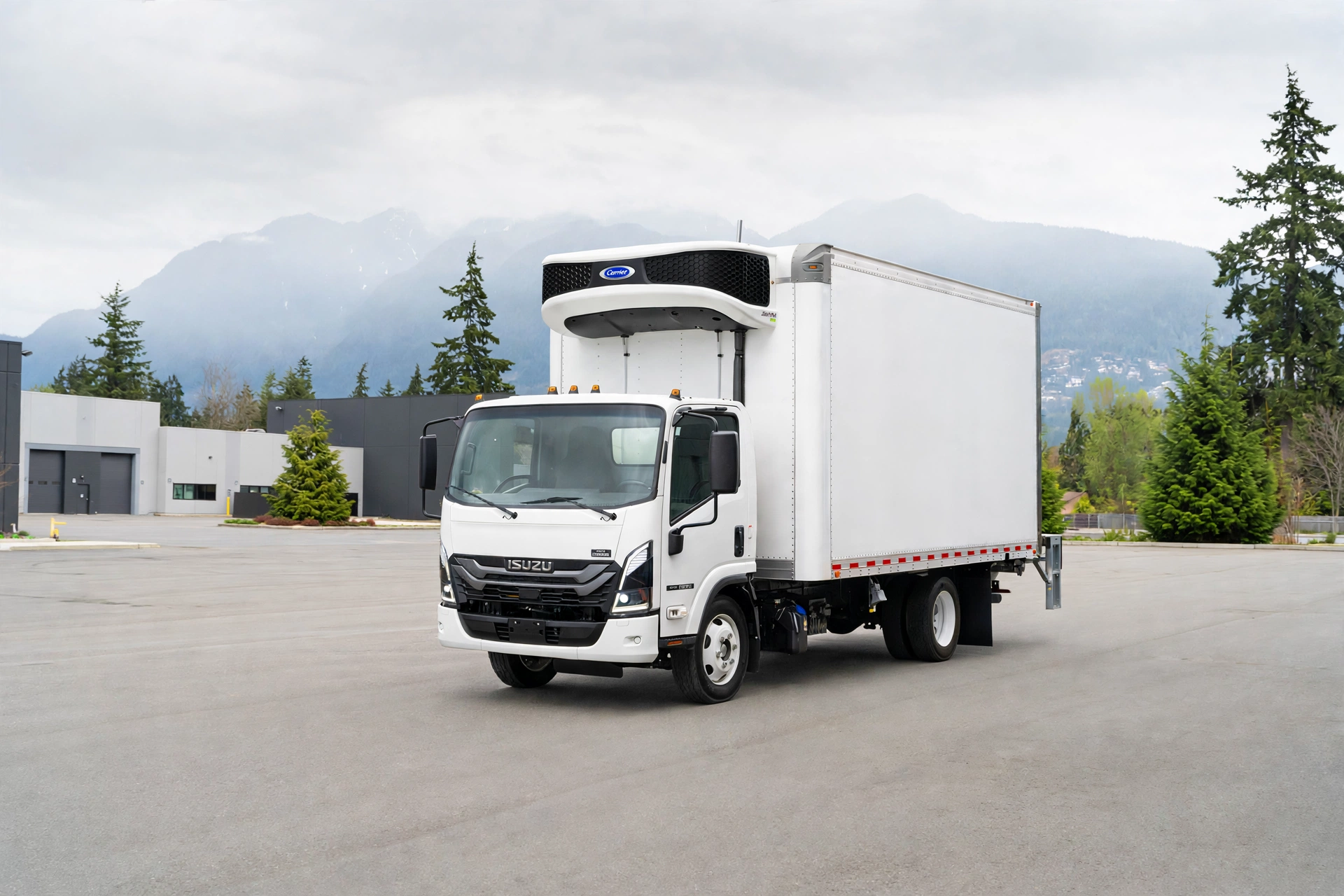

Refrigerated (reefer) truck bodies
Insulated with 100 mm thick XPS in the floor (38 kg/m³) and PU foam (45 kg/m³) in all other panels, with 120 mm floor and roof panels and 100 mm remaining panels. Includes a floor drain assembly and a Maclaren roll-up door with 2″ insulated PVC. Approximate weight from 940 kg (10 ft) to 2,050 kg (20 ft). The refrigeration unit is in customer scope.
Sizes and weights.
Standard sizes and approximate weights from the Evermount truck body specification sheet. 10 and 12 ft bodies are 7.5 ft wide and high externally; 14 to 20 ft bodies are 8 ft. Final specifications are confirmed for each chassis and application.
| Body length | 10 FT | 12 FT | 14 FT | 16 FT | 18 FT | 20 FT |
|---|---|---|---|---|---|---|
| Dry freight external (L × W × H, ft) | 10 × 7.5 × 7.5 | 12 × 7.5 × 7.5 | 14 × 8 × 8 | 16 × 8 × 8 | 18 × 8 × 8 | 20 × 8 × 8 |
| Dry freight approx. weight (kg) | 780 | 900 | 1,120 | 1,360 | 1,550 | 1,700 |
| Refrigerated internal (L × W × H, ft) | 9.3 × 6.8 × 6.8 | 11.3 × 6.8 × 6.8 | 13.34 × 7.34 × 7.34 | 15.34 × 7.34 × 7.34 | 17.34 × 7.34 × 7.34 | 19.34 × 7.34 × 7.34 |
| Refrigerated approx. weight (kg) | 940 | 1,075 | 1,300 | 1,750 | 1,850 | 2,050 |
- Internal and external aluminum extrusion panels and powder-coated aluminum waterproof corner caps
- Galvanized frame, bolted sub-frame with connection brackets
- Motion-sensor LED interior lighting; DOT-approved clearance, licence plate, brake, turn and reverse lights; DOT-approved yellow and red reflective decals
- Rear bumper / step with chequered aluminum plate, PVC Evermount mud flaps and one set of E-track
Built in Abbotsford, serving the Lower Mainland.
Our facility is at 30970 Wheel Ave Unit 407, Abbotsford, BC. We work with businesses in Vancouver, Surrey, Langley, Burnaby, Richmond, Delta and across the Fraser Valley and Lower Mainland, as well as in Alberta. Dealers and fleet buyers can see For Dealers & Fleets. Add liftgates, cargo control or lighting: liftgates, cargo control & parts, lighting & electrical. More answers in our truck body FAQs.
Let’s spec your next truck body.
Tell us your chassis, body length and application and we will recommend a configuration. Use the Request a Quote form, email sales@evermount.ca or call Sales at +1 (250) 885-9335. Operations & Engineering: +1 (250) 884-4437.
